Burger Patty Forming Machine (240mm Belt Width)

Automatic burger former for producing burgers, meat patties, chicken nuggets and other food products in different shapes

Model	HKCX240-Ⅲ
Input voltage	380V / 50Hz
Installed power	0.2 kW
Conveyor belt width	240 mm
Belt speed	3-15 m/min
Working frequency	25-35 cycles/min
Compressed air	1.2 m³/min
Filling area	200 × 140 mm
Outfeed height	700-850 mm
Hopper Capacity	100 L
Dimension	2100 × 600 × 1750 mm

Request a Quote

The automatic meat forming machine completes filling, forming, and discharge in one continuous process. It can form red meat, poultry, seafood, cheese, vegetables, and meat alternatives into a wide range of customized shapes, including burger patties, chicken nuggets, fish cakes, pumpkin patties, and other prepared foods. It is an ideal forming solution for fast-food plants, distribution centers, and food processing factories handling both meat and vegetable mixtures.

Designed for reliability and cost-effectiveness, the forming machine delivers consistent shape and weight across various fillings, including chicken nuggets, sandwich fillings, and vegetable mixes for spring rolls. Molds that can be easily changed allow customization of multiple shapes such as round, oval, comma-shaped, bowl-shaped, and others, supporting flexible product development.

Applications

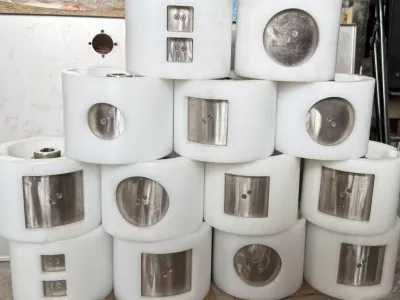

Mold Options

Molds can be customized to produce products in various shapes as required.

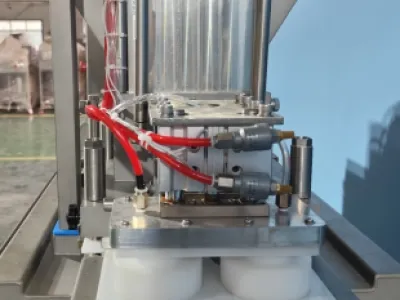

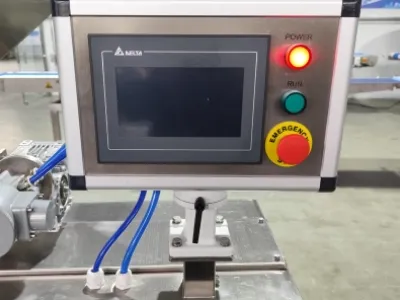

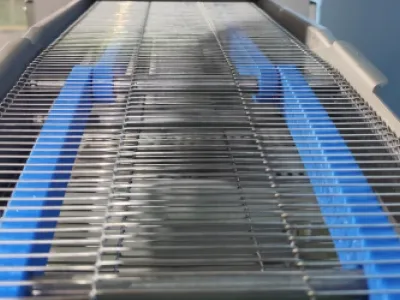

Features

Which forming machine is suitable for small, medium, and large meat-patty processing plants?

Small-scale processors typically choose the burger patty forming machine with 100 mm belt width (2,100 pcs/hour, 6-18 mm thickness).
Medium-scale plants use the burger patty forming machine with 240 mm belt width (belt speed 3–15 m/min, 25–35 cycles/min).
Large-scale plants require the burger patty forming machine with 400 mm belt width (400–800 kg/h, 6–25 mm thickness).
All models automatically complete filling, forming, and discharge.

Which forming machine is recommended for distribution centers that require adjustable patty thickness and stable forming performance?

The burger patty forming machine with 300 mm belt width is recommended. It features a 45 L hopper and completes filling, forming, coating, and discharge at 15-34 cycles/min. Patty thickness is adjustable from 6–35 mm, suitable for operations needing flexibility.
